Sulfur oxides, sulfur dioxide and airborne sulfate, SOx, are short-lived species in the troposphere whose concentrations in air and precipitation have changed dramatically in association with fossil fuel combustion. The historic rise in concentration is coincident with the era of the so-called “Anthropocene.” Unlike concentrations of long-lived species such as carbon dioxide, atmospheric SOx in the United States (US) peaked between 1970 and 2005 then declined. The rise and fall of SOx is traced by comparing national data on emission changes, ambient concentrations, and precipitation sulfate from prior to World War II to the present. Surface SOx concentrations and precipitation sulfate have decreased with emissions in most parts of the US after the late 1970s. Continued reduction toward a natural “background” condition has depended on aggressive management of anthropogenic emission sources. Annual average ambient concentrations of SO2 and SO4 have become more uniform across the US at levels of 1–3 ppbv and 0.3–3 µg/m3, respectively. Precipitation SO4 has a nominal concentration generally less than 0.5 mg/L. The effective lifetime of SOx in the troposphere is a few days. This duration limits the spatial extent of emission source influence of SOx to regional scales, wherein spatial gradients in species concentrations lead to variations in human exposure and impacts on vulnerable terrestrial and aquatic ecosystems. The effects of domestic emission reductions on SOx levels are moderated by intra- and intercontinental transport of SOx from Canada, Mexico, Asia and elsewhere. The trends in tropospheric SOx concentrations illustrate the results of more than a century of rising public awareness and action to progressively reduce a US environmental risk, accomplished with advances in energy production technology that have maintained economic well-being.
The Anthropocene has been proposed as a new epoch beginning around 1950, possibly earlier, distinct from the Holocene because of the measurable effects of human activity on Earth system processes (e.g., Steffen et al., 2011; Edwards, 2016). Human effects on Earth’s atmosphere include climate forcing by long-lived contaminants, such as carbon dioxide (CO2), and by short-lived species, such as suspended particles containing sulfate (SO4) and carbon. Both long-lived and short-lived species derive from geochemical cycles and from anthropogenic emissions, with the latter mainly associated with fossil fuel combustion. These sources are believed to have a major impact on Earth’s atmosphere, especially the lower troposphere, and in turn not only modify the Earth’s climate, but also affect the biosphere and human environment in potentially adverse ways (e.g., Crutzen, 2012). Unlike CO2 which has a tropospheric lifetime of decades, sulfur oxides (SOx, including sulfur dioxide, SO2, and sulfate, SO4) and particulate carbon have tropospheric lifetimes of a few days. Even though the lifetime of SOx, is short, its anthropogenic disturbance to tropospheric chemistry has extended for more than a century as a result of SOx emissions growth. Compared to the probable effects of longer-lived species, such as CO2, anthropogenic SOx has so far been a relatively brief disturbance, especially when considered on geological time scales. The short lifetime of SOx historically meant that SOx was managed as a local to regional (<1000 km) problem; however, recent research also has included transcontinental S pollution (e.g. Irving, 1991; Ramanathan and Yeng, 2009). The principal effect of SOx on climate change involves SO4 particles that produce spatial gradients in radiative cooling and cloud nucleating agents across continents.
The sulfur (S) cycle is an example of an important geochemical cycle that is affected by humans. A portion of global geochemical sulfur resides in the atmosphere as gases and in airborne particles (e.g. Friend, 1973; Andreae and Jaeschke, 1992; Lens, 2009). Sulfur oxide fluxes in the S cycle have departed from a prior state mainly governed by natural emissions of S gases and particulate sulfate to an anthropogenically disturbed state over a time period of less than a few centuries. This departure is attributed to “byproducts” of increasingly diverse populations, requirements for energy and the use of fossil fuels associated with the growth of large metropolitan areas. Concentration and deposition gradients, which are most evident in the Northern Hemisphere, delineate the spatial scales of the impacts. In affected regions, SOx contributes to S mass fluxes and modifies the S cycle (e.g., Friend, 1973; Lens, 2009). Exposure to anthropogenic SOx adversely affects some terrestrial and aquatic ecosystems (e.g., Clair et al., 2011) and human health (e.g., Krewski et al., 2000).
To characterize changes in SOx from actions in the developed world, a consistent, long-term record is needed for SOx emissions, ambient concentrations and deposition. Such a record exists for surface data in the contiguous United States (US) from the early 1960s to the present. Thus, we concentrate on the US as an example, taking advantage of sustained, accessible public records over the last half century or more. Multiple measures of change in SOx are adopted for comparison with annual emission trends. First, ambient SO2 and SO4 concentration data are examined as indicators of near-surface conditions in air chemistry. Both measures are assumed to be applicable to the tropospheric boundary layer. Then, SO4 concentrations in precipitation are examined as a coarse measure of SO4 content integrated from the tropospheric boundary layer through the middle troposphere. The survey of this large collection of data shows the effects of expanding energy production and use on their combustion byproduct, SOx. The initial increase in S emissions with rapid industrialization and urbanization resulted in increasing environmental risk. Recognizing the value of natural and human resources, an increasingly affluent public took social action that yielded environmental improvement. Economic growth, adverse effects on populations, and subsequent improvement in public well-being closely paralleled industrialization. This sequence follows an ecological-economic characterization sometimes represented by the Kuznets Curve (e.g., Stern, 2003).
Our goals in this study are to illustrate how surface SOx concentrations, serving as a proxy for concentrations in the lower troposphere, have changed with anthropogenic emissions, and to discuss how these changes have affected the S component of the Earth system. The changes are measured (a) empirically using ambient concentrations and wet deposition chemistry, and (b) as disturbances in natural atmospheric chemistry involving interactions with a range of gaseous and particle species. Our narrative begins with a historical context of SOx observations from the 19th century to the 21st century. Then, we summarize US data from the 1990s to the present to describe nationwide changes in emissions, ambient concentrations, and deposition patterns. These data show the environmental risk perhaps reaching a maximum by the early 2000s, followed by a steady decline toward a low continental baseline. Recognizing that spatial gradients are important for SOx characterization, we discuss regional examples of SOx change across the US and their implications. The observations of SOx changes yield an important picture of environmental risk reduction during the latter 20th century and early 21st century through direct interactions with humans and vulnerable ecosystems. This part of our study is complemented by examples of SOx “interference” with multi-species natural air chemistry in the lower troposphere. The study is completed with a summary of the important changes in SOx as part of the Anthropocene phenomenon.
Historical context of sulfur oxide changes
Anthropogenic S is suspected to have been present in the troposphere before the 19th century. The longest record of change relevant to the Anthropocene exists for locations in Europe and North America. Atmospheric S from man’s activities has been documented with industrialization in England since the 19th century. Sulfur was identified in deposition across the US in the early 20th century. Routine urban SO2 and SO4 observations have been reported separately in the US after the 1950s. By the 1990s, simultaneous monitoring of SO2 and SO4 exist with emissions estimates in the US.
Sulfur is emitted in the form of gases and particles from natural sources, creating a tropospheric “background”. Naturally emitted S species include hydrogen sulfide, carbonyl sulfide, methyl sulfides and sulfur dioxide. These gases are reactive in the troposphere and are oxidized to form sulfuric acid; combined with cations, they form particulate SO4 salts, adding to ambient SO4 from sea salt and soil dust. Combustion of fuels for energy production, especially coal and petroleum, has increased S levels both locally and globally, mainly in the Northern Hemisphere. The principal S source from combustion is SO2, which oxidizes readily to form sulfuric acid, which in turn combines with ammonia or other cationic species to form other SO4 compounds. The chemical reactivity of SO2 involves important links with oxidant and organic chemistry, modifying natural processes (e.g., Seinfeld and Pandis, 1998). The SOx species are removed from the troposphere rapidly by wet and dry deposition to the Earth’s surface, unlike longer-lived contaminants such as CO2, methane or halocarbons. Sulfur oxides are soluble or absorbable in precipitation, enhancing their removal in a few days (e.g., Hidy, 1973).
Sulfur from air pollution often has been identified visually with smoke from fuel combustion; smoke has been recognized as a nuisance and respiratory irritant since Roman times (e.g., Brimblecombe, 1987). Public attempts to control S emissions, with smoke as a proxy, began in a serious way in the 19th century (e.g., Mosley, 2014) in a reaction to the industrial revolution in England, Europe and the US. Britain and the US adopted a similar populist approach to smoke abatement in the latter 19th and early 20th centuries through community initiatives, litigation and later national legislative attention (e.g., Stradling and Thorsheim, 1999). Early attempts to reduce smoke and S in cities probably had limited influence on the growth or expansion of fossil fuel use at the time. In North America and Europe, S from combustion has been curtailed largely with burning of low sulfur fuels combined with post-combustion emission controls. This reversed the previously rising tropospheric concentrations of these species that accompanied rising emissions driven by urbanization and the industrial revolution (e.g., Smith et al., 2011). A similar pattern of growth and curtailment in the energy sector is taking place in the developing world, especially China and India. To date, curtailing of SO2 emissions in Asia has met with mixed results, as discussed by Klimont et al. (2013).
Anthropogenic S as rainfall SO4 and ambient SO2 occurred at high levels in the United Kingdom by the mid-19th century and early 20th century. In the United States, S was reported in bulk (combined wet and dry) deposition in 1910 and as wet deposition after the 1970s (e.g., Hidy et al., 1984). Historic SOx data are subject to large uncertainties given “primitive” sampling and analytical techniques available at the time of reporting (Text S1), including gas sampling and analysis, chemical analysis of water extracts from particle samples of differing size fractions, bulk (dry and wet) deposition sample collection in open containers, or estimation of ambient concentrations by vegetation stress (e.g., lichen samples). Assuming that the early data are reliable and comparable, SOx found in the polluted troposphere and in surface deposition show high levels, some of which far exceed those reported after the 1970s.
Data from Britain and the US are listed in Table 1 to “scale,” in magnitude and time, the S levels reported for these two highly industrialized nations. 19th century data in England suggest very high local levels of SOx from industrialization and residential heating, which relied on imported and domestic coal for energy (e.g., Brimblecombe, 1987). By mid-20th century, levels of deposition and ambient concentrations declined significantly compared with the 19th and early 20th centuries. Likewise, the US data showed high levels of SO4 in precipitation, implying high ambient concentrations. By mid-to-late 20th century, SO4 levels had declined substantially in rainwater and ambient air despite greatly expanded post-1950s emissions of SOx across the eastern US and in parts of the western US.
aNo attempt is made to reconcile the potentially large historic uncertainties in observations related to timing of sampling, and the use of different sampling and analytical methods (see also Text S1). The improved documentation of post-World War II methods began with Junge’s summaries and studies after the mid-1950s. The observations reported here thus contain important ambiguities between English and US data that make intercomparisons qualitative in nature before the 1980s.
bData from 1955 to present are annual averages; they show substantial regional gradients across the US. These are extracted from table values (See Junge, 1963; NADP, 1978, et seq.). The 19th century observations are very limited, and focus on rainwater sampling and chemistry in keeping with analytical capabilities at the time. The units of SO2 in the literature are given in µg/m3 or parts per billion by volume (ppbv). To convert SO2 in µg/m3 to ppbv for normal atmospheric conditions of 1 atm and 20°C multiply by 0.38. Conventionally, SO4 is reported in µg/m3.
cComparison of observations in England and the US indicate the strong influence of fossil sulfurous fuel combustion emissions with industrialization and urbanization after the 19th century, followed by improvements in ambient and precipitation sulfur oxide levels with recognition of impaired air quality.
dHigh concentrations are attributed to local sources of volcanism.
eValue appears to be high for a daily average compared with London smog extreme of ∼700 ppbv in 1952 (e.g., Brimblecombe, 1987).
fInteragency Monitoring of Protected Visual Environments (IMPROVE); Western Regional Air Quality Study (WRAQS).
Without air quality data, assessments of human health effects from exposure to industrial air pollution were largely intuitive in the 19th century. Recently, Hanlon (2015) found that industrial pollution substantially increased mortality in urban Britain between 1851 and 1860, and increased mortality grew as coal use intensity rose from 1851–1900. In the US, public health concern for SOx pollution was catalyzed in 1948 with the Donora, Pennsylvania event involving the deaths of 17 people from pollution exposure during a five-day event (e.g., Schrenk et al., 1949). Direct ambient measurements were not made during this event (e.g., Williamson, 1973), but in 1949, SO2 concentrations reached ∼500 ppbv with particle concentrations (containing SO4) of ∼4000 µg/m3 (< 35µm diameter) in similar meteorological conditions. Contemporary maximum daily values of US urban SO2 concentrations are <30 ppbv; daily particulate matter concentrations are generally < 30 µg/m3 for particles < 2.5µm in diameter.
Losses of SOx by dry deposition and wet deposition from precipitation reflect emission levels and their changes. Dry deposition and precipitation scavenging are proportional to ambient concentrations and essentially dictate the lifetime of SOx in the troposphere. The amount of dry deposition is proportional to ambient concentration; the rate of deposition is characterized by a proportionality coefficient known as the deposition velocity. Wet deposition of SOx depends on the absorption of SO2, its oxidation in the presence of H2O2 or O3, and collection of aerosol particles containing SO4. The phase of condensate and the processes of nucleation and growth of hydrometeors are also factors in SOx collection. Junge (1963) was one of the first to articulate the SOx proportionality in wet removal process taking place in clouds (rainout), and below clouds (washout). This approach was a simple way to connect ambient SO2 and SO4 concentrations with precipitation chemistry through the water content of clouds and an empirical scavenging coefficient. Adopting Junge’s method, the 19th century issue of linking ambient concentrations with wet chemistry could be resolved. The SO4 composition of rainwater provides a consistent measure of average SO4 content in precipitation, assuming that SO2 absorbed in precipitation water is identified as SO4.
In addition to adversely affecting human health, SOx modifies aquatic and terrestrial ecosystems through deposition to the Earth’s surface. In the 1930s, agriculturists became interested in the levels of natural S deposition that fertilized crops in parts of the US. This led to the early deposition observations reported in several areas (Table 1; e.g., Hidy et al., 1984). In the 1960s, Scandinavian scientists found that excessive wet deposition of acidity associated with SO4 was affecting low alkalinity fresh waters (e.g., Oden, 1968). Studies also showed that terrestrial systems, especially Scandinavian forests with poorly buffered soils, were at risk. Later studies indicated excess acidity issues existed in parts of Europe, Canada and the US (e.g., Cowling, 1995). The acid rain phenomenon associated with SO4 deposition became an international environmental issue by the mid-1970s. The risk of ecosystem damage in parts of the US and Canada resulted in major studies of vulnerable ecosystems between the mid-1970s and 1980s (e.g., Irving, 1991). A national plan for reductions in S deposition resulted from the amendments to the US Clean Air Act in 1990.
Strategies for returning to less anthropogenically influenced conditions have aimed to reduce the impact of SOx deposition from the troposphere. One approach taken after the 1980s was to try to find deposition loading rates associated with significant damage (critical loads) of vulnerable ecosystems. The loadings provide a basis for reducing SOx and other pollutant levels, including nitrogen species, to conditions that would have no “significant” effect on the exposed systems (New York State Energy Research and Development Authority - NYSERDA, 2014). In North America, most of the initial research on this concept derived from European and Canadian investigators and emerged in regulatory discussions in the 1980s (e.g., Clair et al., 2011). Later, many US ecologists embraced the idea of critical loads. Critical loads for vulnerable terrestrial and aquatic systems are estimated to be in the range of <100 to 700 eq/ha-y for eastern Canada (Environment Canada, 2012). These levels are believed to be similar to the northeastern US. The development of critical load values has been controversial—especially in relating values to ambient concentrations of SOx. The controversy centers on quantification of the levels of sulfur deposition occurring in a pristine, ecologically relevant state having minimal anthropogenic influence. With reduction in SOx across the US, vulnerable aquatic and terrestrial ecosystems have been subjected to less stress, as conditions move towards achieving estimated critical load levels. Ironically, concern for availability of S through deposition has emerged again for certain crops in the US and Europe with the major declines in deposition from S pollution (e.g., Agron, 2001; Camberato and Casteel, 2010). This, of course, results in added agricultural S fertilizer dispersal, affecting the “natural” S cycle in another way.
Sulfur oxide emissions
The impact of SOx on the atmospheric component of the sulfur cycle has varied historically with changing levels of anthropogenic emissions superimposed on temporally variable natural emissions. Both anthropogenic and natural emissions have been studied extensively. Natural sources consist of marine and terrestrial emissions, including a variety of S-containing gases of biogenic origin, SO2 and H2S from volcanic disturbances, sea salt and soil dust (e.g., Aneya, 1990; Andreae and Jaeschke, 1992). Examples of natural tropospheric levels of gases and particles from marine or terrestrial sources are listed in Table S1. Global marine and terrestrial S emissions attributed to the natural S cycle are on the order of 3 × 104 ktonnes/y (e.g. Bates et al., 1992), and about 16% of 1980s northern hemispheric S emissions. After 1850, global SO2 emission rates from anthropogenic sources began to increase upwards from approximately 2000 ktonnes/y. Smith et al. (2011) indicate a global combustion and process related SO2 emissions peak at 13 × 104 ktonnes/y in 1975, with a subsequent decline to ∼12 × 104 ktonnes/y in 2005. Prior to 1900, anthropogenic SO2 emissions were dominated by European sources; between 1900 and 1960, North American emissions became predominant. By 1990 anthropogenic emissions from Asia began to exceed the combined Europe and US emissions. Sulfur dioxide emissions from biomass burning exceeded fossil fuel combustion and industrial processing emissions in 1850, but by 1870 the latter categories began to dominate. By 2005, SO2 from biomass burning amounted to about 34% of the fossil fuel combustion and processing. Natural S emissions are estimated to be less than a few percent of emissions affecting the US (natural to anthropogenic ratio < 0.1; e.g., Irving, 1991).

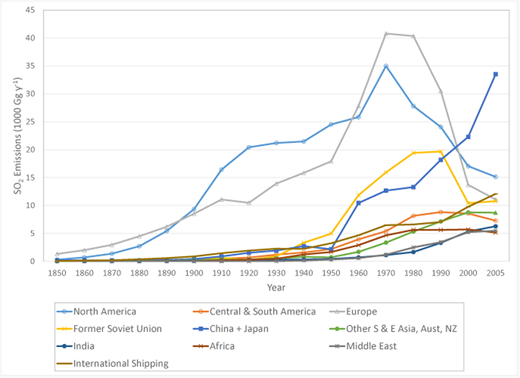

A history of estimated worldwide anthropogenic emissions from major contributors is shown in Figure 1. The largest contributors from 1850 to the 1950s are North America and Europe. Asia and India, and other developing nations, began to increase their emissions after 1950. US anthropogenic SO2 emissions generally are much greater than those of Canada, so that the North American trends in Figure 1 approximate those of the US. We concentrate on anthropogenic components, primarily SO2, noting that SO3 emissions are small relative to gaseous SO2, <1% (e.g., Hardman et al., 1998). Estimated annual North American SO2 emissions from 1850–2005 are indicated in Figure 1, showing an increase from ∼300 ktonnes/y in 1850 to a peak in the 1970s of ∼30 × 103 ktonnes/y, followed by a decline, which has continued since 2000 (e.g., Environmental Protection Agency - EPA, 2014; Xing et al., 2013). In most locations, the current US SOx emissions tend to be dominated by large non-urban power plants, many of which have used coal as fuel. Systematic emission reduction from these sources since the 1980s has come from switching to increasingly low sulfur coal, natural gas, or effluent emission control using scrubbers. Adoption of these strategies has greatly reduced the presence of anthropogenic SOx in the troposphere, and in deposition to Earth’s surface.
The US domestic trends illustrate the emission changes occurring in response to a policy to reduce air pollution and ambient SO2. Emission reductions were mandated by the US Clean Air Act of 1970 and the 1977–1990 amendments, which addressed public health concerns, acid deposition, and visibility impairment. Regional emission inventories show similar temporal characteristics, but the peak values of emissions and ambient concentrations vary substantially across the US with population and industrial distributions. 2010 SO2 emission levels in the US are approximately 7.7 × 103 ktonnes/y (Xing et al., 2013). Estimated natural emissions influencing the US, including terrestrial biospheric sources and S entering the marine borders of the US, are about 400 ktonnes/y as SO2 (e.g., Irving, 1991). Thus, as noted above, if the natural emissions are reasonably constant, they represent a minor fraction of the total contemporary US SO2 emissions.
Examples of spatially disaggregated US SO2 emission distributions for 1985 and 2011 are shown in Figure S1. The geographical distribution of anthropogenic emissions follows population and industrial centers across the US with increasingly isolated sources west of the Mississippi River and in part of the Southeast. East of the Mississippi River, especially through the Ohio River Valley and Pennsylvania, a number of large SO2 sources were built in close proximity with a west-east orientation. This geographical configuration, along with prevailing westerly winds, created nearly ideal conditions for accumulation and regional transport of SO2 and SO4 in ambient air moving toward the US East Coast (e.g., Hidy, 1994). In the Southeast, regional SOx accumulation takes place in association with large spatial scale air mass stagnation over relatively isolated large sources, especially in summer, unlike conditions in the Northeast. In the West, with some exceptions such as southern California, large sources are geographically isolated by >∼100km. This allows for dilution of emitted pollution, and regional scale air mass stagnation or transport accumulation is infrequent compared with the East.
US national ambient sulfur oxide trends
Corresponding to the SO2 emission distributions are the geographical distributions of ambient concentrations for SO2 and SO4. These are shown for 1989–2001 and 2011–2013 in Figures S2 and S3. Ambient SO2 concentration variations tend to overlay regions of different emission density, as expected. Through much of the US, estimates of 1989–1991 annual average concentration range from 2–3 µg/m3 (0.8–1 ppbv at standard temperature and pressure). A noted exception is in the midwestern and northeastern regions with concentrations ranging from 14–16 µg/m3 (5–6 ppbv). As of 2011–2013, most of the US is in a regime having annual average SO2 concentrations of <∼2 µg/m3 (0.8 ppbv). In the Midwest and East, ambient SO2 concentrations have declined to 6–8 µg/m3 range (2.3–3 ppbv), responding to the national reductions in SO2 emissions. Ambient annual average SO4 concentrations have shown a similar decline between the two periods. In 1989–1991, SO4 concentrations are ∼< 2 µg/m3, while in 2011–2013, SO4 concentrations west of the Mississippi River are <1–2 µg/m3; eastward from the river concentrations are in the range of 2–4 µg/m3. The region of “elevated” SO4 concentrations east of the Mississippi River is broader than the area having high emission densities (e.g.,Mueller et al., 1980). Tropospheric oxidation of SO2 that is nominally in a range of 0.2–4%/h generates spatial distributions of SO4 deposition extending 400–1000 km downwind of emission sources.
The rates of reduction in annual average ambient SO2 concentration, by region, generally show a linear, 1:1 proportionality relationship with regional rates of reduction in annual SO2 emissions (e.g., Hidy et al., 2014). The decline in SO4 concentrations vs. emissions or ambient SO2 tends to be linear, but less than 1:1 (e.g. Hidy et al., 2014; Sickles and Shadwick, 2015). As discussed later, the difference between the responses of ambient SO2 and SO4 is identified with the atmospheric production of SO4 during dispersal from primary SO2 sources. This process is analogous to the dispersal of tropospheric ozone produced from the chemistry of organic vapors and nitrogen oxides (e.g., Seinfeld and Pandis, 1998; Cooper et al., 2015).
Although there have been major reductions in US ambient SOx concentrations over the past 25 years, concentrations remain higher than (nominal) background levels without human disturbance. A continental background depends on the strength of natural sources, and will vary in time and space (Hidy and Blanchard, 2005). Estimates of baseline contributions, including a natural and anthropogenic residue, can be made from ambient concentration measurements. Typical values for baseline SO2 concentrations in the troposphere cited by Friend (1973) are 0.1 ppbv with a range from 0–1.5 ppbv. More recent reported values are illustrated in Table S1, which show a 5–160 pptv range of concentrations. Data from remote sites worldwide reported by Carmichael et al. (2003) indicate a range from 30–160 pptv. For SO4, Cadle (1973) reported ambient concentrations of 0.7 µg/m3 from sampling over the Northern Pacific Ocean (at altitude 0.015 km) in the 1970s, while Leck et al. (2002) reported concentrations from shipboard non-sea salt (nss) measurements of ∼<0.5 µg/m3 in the South Atlantic Ocean. Hidy (2009) summarized data from several observational campaigns over the Pacific and Atlantic regions that indicated concentrations in the ∼0.1 µg/m3 range. Observations over remote North American locations range from <0.1 to ∼0.5 µg/m3 SO4 (e.g., Van Curen, 2003; Hidy and Blanchard, 2005; Heald et al., 2006). Observations of SO4 concentrations are approximately 0.5 µg/m3 at remote sites along the Pacific Coast and immediately inland. From South America, values <0.1 µg/m3 have been reported (e.g., Hidy, 2009). We hypothesize that a baseline US level of SO2 is about 30–160 pptv, and varies depending on location and season. We also suggest that the US baseline SO4 is in the range of <0.1–0.5 µg/m3, including natural and anthropogenic components. The sulfate baseline exhibits a variability >1 µg/m3 if the contributions of sea salt and other natural S sources are included. Assuming this range of natural SO4 occurrence is reliable, we conclude that although SOx concentrations have declined, the current levels reached in the US remain well above expected continental baseline levels, except perhaps in remote locations mainly in the western and far-western US.
Sulfur oxide deposition and precipitation chemistry trends
Sulfur deposition provides another measure of change that follows emission trends. Dry deposition rates have been estimated typically for relatively smooth surfaces sometimes covered with low vegetation; forested, hilly and mountainous terrain have not been characterized with the same certainty. (e.g., Sickles and Shadwick, 2015). Trends in dry deposition have been found to follow trends in ambient concentrations of SOx, accounting for surface inhomogeneities in spatially differentiated models. Changes in dry deposition have been estimated from measurements at a number of rural locations since the 1980s (e.g. Clean Air Status and Trends Network - CASTNET, 2013; 2016). Deposition in precipitation depends on rainwater concentration and precipitation rate. SO4 concentrations in precipitation also provide an extended, well documented history of change in precipitation SO4 corresponding to ambient SOx and emissions changes since the 1950s. As an example of wet deposition trends, Figure S4 shows a comparison of 1989–1991 with 2011–2013 maps of national rainwater sulfate from the National Acid Deposition Program (NADP, e.g. EPA, 2016). This continuing program of sampling and chemical assessment of rainwater has existed in the US since about 1980 (e.g., Hidy et al., 1984; NADP, 2016). A comparison in Figure S5 indicates a major reduction of rainwater SO4 that accompanies the reduction in national SO2 and SO4 concentration shown in Figure S2 and S3. Figure S4a shows concentrations >∼ 3 mg/L (mgL-1) in the eastern US with generally concentrations <∼ 1 mg/L west of the Mississippi River. One exception is the reported high concentrations in northern Utah, related to large rural sources in this area. By 2011–2013, SO4 in rainwater (Figure S4b) declined across the US to levels < 1.5 mg/L in the East and <∼ 1 µg/m3 in the West. These levels are similar to current levels in Europe but are much higher than contemporary levels in remote areas. For example, snowpack SO4 from the Upper Fremont Glacier in Wyoming is 0.06–0.08 mg/l between 1977 and 1985, with earlier values near zero in the snow-ice strata (Schuster et al., 2000). This glacier is the only one reporting SO4 in snow after the 1700s in the continental US, but is most relevant to the western states. For comparison, Preunkert and Legrand (2001) report that winter preindustrial levels of SO4 in snow in the French Alps is about 0.02 mg/L reaching 0.07 mg/L in 1980. Using the Fremont Glacier levels as a proxy for tropospheric SO4 in the US, there evidently remains substantial ambient SO4 to decrease to achieve a level comparable to a pre-20th century “natural” state in winter (when biogenic production is minimal).
Regional examples of sulfur oxide changes
The short lifetime of SOx in the troposphere favors the local and regional character of impacts as discussed above. Sulfate is often used as an index for changes in the regional distribution of SOx in response to changes in SO2 emissions (e.g., Hidy, 1994). The distribution of ambient SO4 concentrations in multistate regions of the US is illustrated in Table 2, and graphically in Figure 2. These data cover the period between the late 1960s through 2010. Shown in Figure 2 are post-1990 trends in regional emissions compared with SO4 changes from the national networks (chemical speciation network (EPA, 2016), and IMPROVE (CIRA, 2016)). The table suggests a peaking of SO4 with SO2 emissions across the US, followed by a decline to lower annual average concentrations after the late 1990s and beyond. The changes follow the national timetable for SOx reductions set by the 1990 Clean Air Act amendments.
aNote prior to 1980 SO4 measurements were made using water extracts from 24 hr. filter samples of particles nominally less than 35 µm in diameter (total suspended particles-TSP). From 1980 to 2000, SO4 was measured from water extracts from filter samples of particles <∼ 10 µm diameter. From 2000 measurements were reported from filter sampling <∼ 2.5 µm diameter. Field studies showed that airborne SO4 is found predominantly in the 2.5 µm diameter fraction (see also Text S1). However, both the 10 µm and 2.5 µm fractions can biased lower than total SO4 reported from the 35 µm sampling. The sampling difference potentially affects the magnitude of the SO4 trends.
bCalifornia, Oregon, Washington.
cNevada, Arizona, Utah, New Mexico, Colorado, Wyoming, Idaho, Montana, Dakotas
dIowa, Illinois, Indiana, Michigan, Wisconsin, Minnesota, Ohio, Kentucky, Missouri, Kansas, Nebraska
eTexas, Arkansas, Missouri, Oklahoma, Louisiana
fNew York, Massachusetts, Pennsylvania, Vermont, New Hampshire, Maine, Maryland, Delaware, DC
gVirginia, West Virginia, North Carolina, South Carolina, Alabama, Mississippi, Georgia, Florida, Tennessee
hIMPROVE Network only rural-remote sites.
iCalifornia only for 1971 spot sampling Nov.-Dec. Range includes (low) remote sites and (high) Los Angeles (Hidy et al., 1980).
jThis annual average value compares with rural, annual median values in 1988–1990 for SO2 and SO4 of 3.1 µg/m3 and 9 µg/m3 respectively at sites in AL, MS, GA, SC, TN and NC (Bowne et al., 1991). Note that the rural SO2 concentrations are less than SO4 during this period.

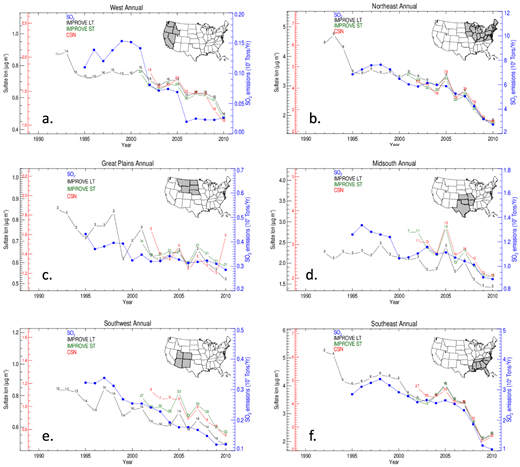

Figure 2 includes rural or nonurban annual average SO4 data from the two national monitoring networks, IMPROVE and CSN. Hand et al. (2012b) report trends in terms of long- term (IMPROVE) sites (LT), and CSN data after 2000 compared with shorter-term IMPROVE data (ST). These ambient data are compared with six regional trends in SO2 emissions derived from the continuous emission monitoring (CEM) of power plant effluents (e.g., EPA, 2014). As indicated in the figure there has been a regional trend downward essentially everywhere in the US coinciding with reductions in SO2 emissions. By 2010 the ambient SO4 across the US declined to a range of 0.5–2 µg/m3. The lowest current levels are seen in the West and Great Plains where they are believed to approach a range expected for a continental baseline, which includes an impact of transpacific transport of pollution from Asia (e.g., Hidy and Blanchard, 2005).
It’s beyond our scope to look at all of the US changes in detail by region, so we select three locations with long-term data to exemplify SOx changes on a regional and local scale for different demographic, emissions and climatological conditions. The choices are: The Northeast, the Southeast and the West, particularly southern California. The northeastern US represents a location of high population density and an intensive industrial complex. It is widely known to be susceptible to the influence of transported SOx from regional sources to the west and to the south. The Northeast is affected by waves of widespread air mass stagnation, especially in summer. The stagnation conditions are followed by intervals with westerly, long-range pollution transport paralleling frontal systems (e.g., Irving et al., 1991; Hidy, 1994). People living in the Northeast obviously have the potential for exposure to, and effects from, anthropogenic SOx. There also are major terrestrial and aquatic ecosystem resources in the region that are vulnerable to SOx exposure either in dry or wet form. The eastern parts of the region are considered to be influenced by pollution originating upwind in the Midwest and Southeast. The linear scale of the Northeast ranges from ∼400−1000 km in extent. The southeastern US is a subtropical climatic regime that has experienced increasing SOx and other pollution after the mid-20th century, associated with major increases in industrial activity, energy production and population growth. The Southeast experiences frequent air mass stagnation periods especially in summer that result in high levels of SO4 over ∼500 km extent. Ecological systems in parts of the Southeast also are susceptible to S deposition exposure. The urbanization of the Southeast has a potential for widespread adverse population exposure. The West contains extensive arid regions, which contrast with wetter locales along the Pacific Coast. Discrete metropolitan areas with high population densities and more industry are generally separated by hundreds of kilometers. Isolated energy production activities are scattered throughout the region. Many parts of the West are geographically remote and exhibit low SOx levels compared with elevated SOx concentrations occurring in more highly populated areas. However, there are large metropolitan areas, e.g., in California and other states, that have had major historic SOx impacts associated with photochemical pollution. Emission sources in western cities are complemented inland by widespread, isolated rural coal extraction, rural electricity and petroleum energy production, and non-ferrous metal smelting. Some mountainous ecological systems in the West are vulnerable to SO4 deposition exposure analogous to the East. Listed in Table S2 are mid-1960s data from cities in these three regions and rural locations. These are compared with values in Tables 1 and 2 to indicate their representativeness relative to aggregated data for the US.
The northeastern US historically has had the highest sustained urban SOx concentrations in the country, especially after World War II. In addition, the rural and remote areas of the region have recorded high levels of SOx deposition since contemporary observations began in the 1970s, particularly in upper New York State and Pennsylvania. Perhaps most relevant to our study are rural sites with a long-term record. These are exemplified by Whiteface Mountain in the Adirondack Mountains (44.366oN; 73.903oW). Whiteface Mountain has a record of SOx observations that extends from the 1970s to the present (e.g., Husain et al., 2004; Schwab et al., 2016; Brandt et al., 2016; Rattigan et al., 2016). Whiteface Mountain has two sampling locations, one at the base of the mountain (600m elevation) and one at a summit observatory at 1.5 km elevation. The SOx sampling is done at the base of the mountain.

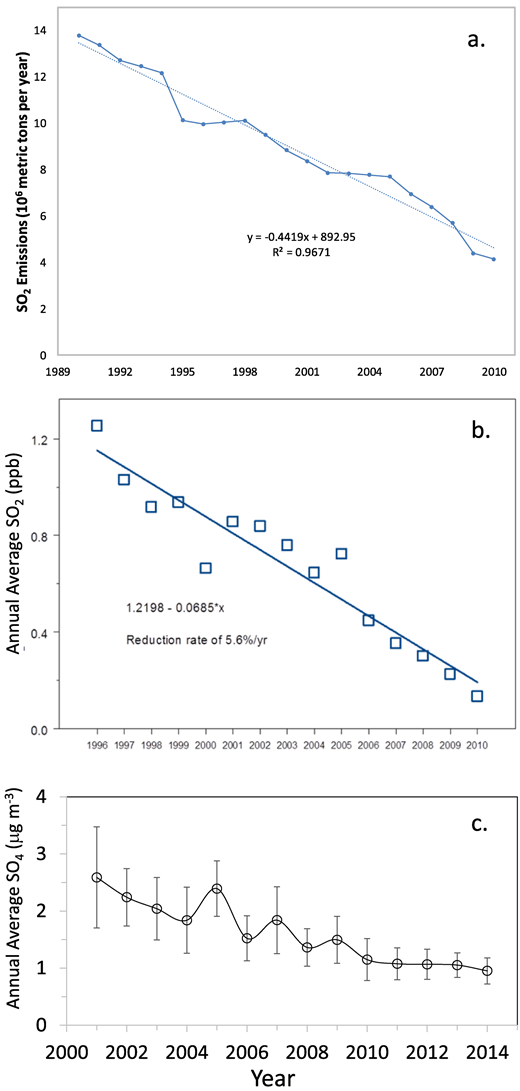

The annual average ambient SOx concentration trends at Whiteface are compared with regional emissions based on the National Emission Inventory (NEI) for the Northeast region in Figure 3. Emissions and ambient SO2 track closely, as indicated in Figures 3a and 3b. Ambient SO2 levels decline from 1.1 ppbv to 0.2 ppbv between 1989 and 2010. Prior to 1992, three-year means of SO4 concentrations were 4 µg/m3 in 1979, 3.2 µg/m3 in 1982 and 2.4 µg/m3 later. Paralleling the emissions and ambient SO2 decreases after 2000 are the annual average SO4 concentration declines exemplified in Figure 3c. Sulfate decreased at a linear rate that is approximately the same as the 1986-2010 rate of ambient SO2 reduction. After 2010, ambient concentrations of SO2 and SO4 tend to level at ∼1 µg/m3. The latter SO4 concentration is essentially the same as reported at Mt. Washington, New Hampshire (1.92 km height) for 1999–2004 (Fischer et al., 2007). The pre-1990s concentrations for the rural Northeast are similar to the Whiteface conditions. For example, Bowne et al. (1991) show 1988–1990 annual median concentrations of SO2 and SO4 of 6.7 µg/m3 (2.5 ppbv), and 3.4 µg/m3 respectively.
Husain et al. (2004) compared Whiteface SO4 data between 1979 and 2002 with data from another rural site, Maysville, New York, located to the WSW of Whiteface Mountain near Lake Erie. Sulfate concentrations at Maysville during this period were approximately twice those of Whiteface. Both showed 30% or more decrease with decreasing regional SO2 emissions. At other rural sites in the Northeast, annual average SO4 concentrations in 2001 were 2–3.7 µg/m3. For comparison, SO4 concentrations in the New York City metropolitan area between 2000 and 2014 ranged from 4 µg/m3 to approximately 2 µg/m3, much lower than the 14–16 µg/m3 concentrations reported in 1972 by Lynn et al. (1975).
The current concentrations at Whiteface Mountain and Mt. Washington begin to approach a hypothetical regional baseline for the eastern US, but still remain at least a factor of two or more above it, based on rural western US and southern hemispheric conditions.

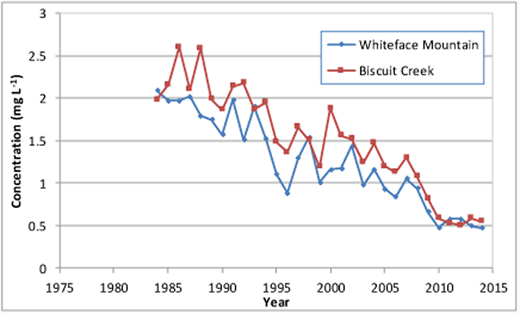

Measurements of wet deposition and water chemistry also have been made at Whiteface Mountain. The trend in precipitation sulfate concentrations is shown in Figure 4, and is compared with Biscuit Creek in central New York. These data suggest a decline in precipitation SO4 since 1980, with a similar rate as that seen in the ambient SOx concentrations. The decline is a change of 0.13 mg/L-y between 1990 and 2010, amounting to about 5%/y, which is comparable with emission reductions. In both ambient SOx and SO4 precipitation concentrations, there is leveling off to near zero change after 2010. Because the precipitation trend depends on both the annual precipitation quantity and the frequency of precipitation, a direct linear correspondence between precipitation SO4 and ambient SOx concentrations would not necessarily be expected.
The southeastern US has been strongly influenced by fossil fuel power plant SO2 emissions, which grew steadily from the 1950s throughout the Southeast. This growth was superimposed on local emissions from ferrous metal processing (e.g., Birmingham, Alabama), paper and pulp mills, textile and forest product industry operations and agriculture. In Figure 2, trends in SO4 compared with emissions are shown for the region. After 2000, SO4 has declined with emissions, largely in response to reduction in S emissions from large coal-fired power plants in the region after 2004.
For air quality, the region is characterized by a regional (Southeastern Aerosol Research and Characterization –SEARCH) network of eight sites located inland and near the coast of the Gulf of Mexico, and extending west to east by ∼500 km (e.g., Hansen et al., 2003). The SEARCH data are of particular interest in that each of the stations measures ambient SO2 and SO4, and recently two of the sites have been instrumented to collect precipitation samples. The regional SOx trends are documented using early observations beginning in the mid-1960s through the 1990s (e.g., Tables 1 and 2) and later with the SEARCH measurements since 2000. The decline in post-2000 SO2 emissions in the Southeast are quantified using the EPA NEI (e.g., Blanchard et al., 2013) for Alabama, Georgia, Mississippi and northern Florida, as shown in Figure 5. The data in the figure compare the decrease in ambient SO2 and SO4 with regional emissions of SO2. SO2 concentrations follow the emissions decline in 1:1 proportionality; SO4 concentrations also track the emissions and ambient SO2, but with a less than 1:1 proportionality. By 2013, the regional (rural) annual SO4 concentrations have decreased to approximately 2 µg/m3, with the SO2 concentration decrease of ∼ 1 µg/m3. The current rural levels of SOx in the SEARCH domain remain well above those expected to be representative of conditions in the much of the West, which are minimally influenced by local anthropogenic activity.

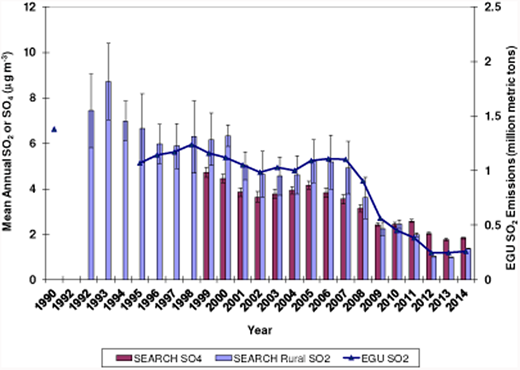

Over the period 2000–2012, ambient SO2 concentration reductions of ∼ 7%/y are linear, and 1:1 proportional, with emissions reductions. SO4 declined ∼5%/y. The different responses of ambient SO4 and SO2 concentrations to southeastern emission reductions could be caused by chemical and meteorological processes that result in less linear oxidation rates than have been observed at Whiteface Mountain.

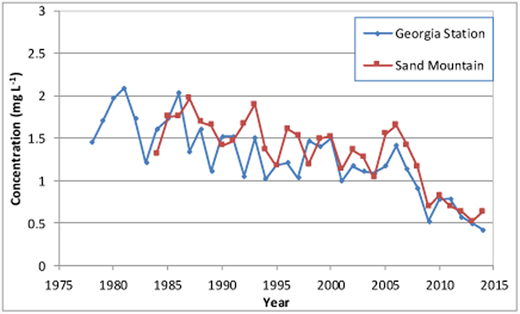

Trends in precipitation SO4 in the Southeast qualitatively follow SO2 emission reductions, as indicated in Figure 6. Included in the rainwater concentrations is a maximum level in 2005–2007 followed by a sharp decrease as in the case of the emissions and SOx patterns. After 2010, sulfate in precipitation has decreased modestly to 0.6 mg/L as of 2014. This concentration is similar to earlier levels reported in the mid-1950s (Table 1), and essentially the same level seen in the New York results (Figure 3). Precipitation sulfate from 2000–2012 declined ∼6%/y, similar to SO2 emission reductions.
The western US ranges from remote locations to highly populated areas, especially in California. Figure 2 shows data from western locations on or near the Pacific Coast, inland over the Sierra Nevada Mountains to Nevada, across the Cascade Range to Idaho, the arid Southwest, and the Great Plains. In these regions the post-1990 trends follow qualitatively SO2 emissions, declining through 2010. As noted earlier, the western SO4 concentrations are generally lower than those occurring in the East, but are similar in recent years to rural areas of the Northeast. Data in Table 2 compare annual average SO4 trends by region, separating the coastal and inland West. In the late 1980s, for example, annual average SO4 levels are similar between the rural coastal sites and inland. In contrast, Miller and Flores (1992) reported that 1986–1987 SO2 concentrations in the inland National Parks (and in Hawaii and Alaska) averaged 1.3 µg/m3, with a range of 0.8–1.6 µg/m3, compared with ∼ 4 µg/m3 at urban locations in southern California.
Because of its long-lasting concern about air pollution since the 1940s, southern California has perhaps the longest record of air pollution measurements available in the West, dating back prior to the 1950s. Sulfur dioxide measurements began systematically in the 1960s. The unusually strong influence of photochemical smog in southern California has favored rapid oxidation of SO2 there. The resulting production of particulate SO4 reduced visibility and increased acidity in the urban air around Los Angeles. Particulate SO4 pollution extended into the California Central Valley and the desert-montane Southwest with air mass transport and in-situ production. This case is a unique regional “disturbance” comparable to the appearance of severe smoke pollution in industrialized Europe and England.
Data in Table 3 lists emissions and ambient SOx in the Los Angeles area, or more broadly in the California South Coast Air Basin (SCAB), after the 1960s. Most of the pre-1990s data derive from local or state monitoring in the basin. The recent SO4 concentrations shown in the table come from an IMPROVE site and a CSN site east of the urban area. The daily emissions are substantial across the basin through 1974, and are later followed by major emission reductions. For example, between 1980 and 1995 reductions in (assumed) annual averages of daily SO2 emissions of ∼5%/y resulted in the same annual reductions in SO2, while SO4 reductions were ∼4%/y. Comparison of early emissions with more recent estimates is problematic because local authorities combined the Los Angeles Air Pollution Control District with five counties in the region to form the South Coast Air Quality Management District (AQMD) in 1976. Qualitatively, both ambient SO2 and SO4 have declined in the SCAB with SO2 emission reductions, but perhaps not proportionally (e.g., Kurosaka, 1976). Levels reported into the early 21st century suggest a leveling of ambient SO2 concentrations basin-wide along with urban SO4. The rural concentrations at least 100 km from downtown Los Angeles approach ambient levels seen elsewhere in the inland West or further northwest along the Pacific Coast.
aSO4 concentrations from 24 hr. filter samples from high volume samplers with inlet size fraction <35 µm diameter. Values prior to 1974 potentially have positive bias of 16% (Frank, 1974). Filter samples 1980–1999 are from high volume samplers with a size fraction of <∼ 10 µm diameter. Post-1999 samples are from filter samplers with < 2.5 µm diameter size fraction (see also Text S1). Years of sampling studies indicate that SO4 lies mainly in particles of less than 2.5 µm diameter.
bComposite of Los Angeles, Long Beach and Pasadena operated by the Los Angeles Air Pollution Control District (The first two are located near major sources of SO2). Prior to 1980, SO2 concentrations were measured using 24 hour bubblers or early continuous instruments, which have potential bias or interference from co-pollutants. Post 1980s, the measurements for which most urban samples were found to be below detection limit.
cAfter 1976, the LAAPQD was merged to a five county South Coast Air Quality Management District. Concentrations reported through 1976 are for composite for metropolitan communities, Los Angeles, Reseda, West Los Angeles, and Lennox
dIMPROVE data are for a rural site or estimate from regional extrapolations (e.g., San Gorgonio, CA) and are likely to be biased low for the metropolitan area.
eBased on three year running average (CARB, 2000).
The SCAB (and the Pacific coastal lands) experiences some influence of SOx from intercontinental transport across the Pacific Ocean from Asia. The influence of this source of SO4, for example, is estimated annually to be ∼0.1–0.5 µg/m3 (e.g. Van Curen, 2003; Hidy and Blanchard, 2005; Heald et al., 2006). The sea salt SO4 component from evaporated, windblown spray from near coastal waters or surf is estimated to be of order 0.2 µg/m3 on average for particles ∼<35 µm diameter and < 30 ng/m3 for 1.1 µm diameter particles.(e.g., Miller et al., 1972; Hidy et al., 1974; Quinn and Bates, 2005 ). These “unmanageable” sources of SO4 along the coast, combined with a mesoscale offshore air circulation (e.g., Hidy et al., 1974), create a potentially high baseline for the lower troposphere over California.
The Perraud et al. (2015) study of SCAB air quality provides insight into baseline SOx concentrations occurring in the absence of local SO2 emissions. The modeling analysis compared results with and without local anthropogenic SO2 emissions, taking into account oxidized organosulfur compounds from natural sources and from anthropogenic sources such as urban and agricultural activity. The calculations indicate a decrease in (SO4) particle formation of two orders of magnitude compared with current levels. However, particulate SO4 will still be generated in southern California through intermediate reaction pathways associated with sulfuric acid and methanesulfonic acid.

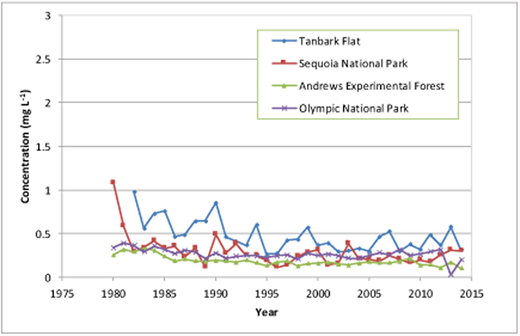

Like ambient air conditions, SO4 concentrations in western precipitation show complex trends reflecting regional scale scavenging of airborne material. Shown in Figure 7 are examples of SO4 in precipitation chemistry along the Pacific Coast (inland to ∼200 km). In this region, precipitation is influenced by mountain (orographic) effects, and by atmospheric processes occurring across the eastern Pacific Ocean. The site near the SCAB (Tanbark Flat) indicates high levels of aqueous SO4 relative to the other examples, but reflects a steady decline in SO4 concentration until the mid-1990s when ambient SO4 levels tend to level out after local SO2 emissions reductions have taken place. By 2014, SO4 in precipitation at Tanbark Flat had steadied at ∼ 0.4 mg/L. Another California site in the Sierra Nevada is located inland at Sequoia National Park NNE of Los Angeles, and east of the San Joaquin Valley. A large areal source of SO2 exists from agriculture and oil and gas operations in the San Joaquin Valley. At these California precipitation monitoring locations, a recorded decline in SO4 concentration began in 1980, but leveled off after the mid-1990s to about 0.3 mg/L. Farther north and west near the coast, rural sites in Oregon and Washington show lower SO4 concentrations with some evidence of downward trends from before 1990 and ending in 2014 at 0.1–0.2 mg/L. These sites are likely to represent SO4 in precipitation heavily influenced by local weather over the eastern Pacific Ocean and orographic effects from the mountains to the east of the Coast. Increased fossil fuel combustion in Asia over the past two decades does not appear to appreciably affect precipitation SO4. Thus one could interpret the current SO4 concentrations in Oregon and Washington as a coarse measure of a continental baseline for precipitation SO4.
Added perspective on precipitation SO4 trends is found further eastward towards the Great Plains (Figure S5). The precipitation SO4 levels range from a high in eastern Kansas to low values in Montana and Wyoming. The higher levels in Kansas approach concentrations found in the more populated and industrialized midwestern and eastern parts of the country; as in the East and Midwest, the Kansas measurements show a steadily declining trend. The lower levels in Wyoming and Montana indicate essentially constant conditions after the mid-1980s to about 0.2 mg/L. Two additional sites are included for trends, one in Colorado and one in North Dakota near the Canadian border. Both show steadily declining SO4 trends since 1980, approaching the 2014 concentrations seen in Wyoming and Montana. The minimum level of ∼0.2 mg/L appears to reflect transport from the Pacific Coast to inland areas having isolated population centers that only minimally add to the wet SO4 loading.
In summary, the contemporary record of annual average ambient SOx concentrations and precipitation SO4 in the US shows a direct response to SOx emissions on spatial scales ranging from continental to sub-regional. Changes in SO2 concentrations tend to be 1:1 proportional to emissions, while changes in SO4 concentrations are less than 1:1 relative to emissions changes. Global modeling consistently shows that ambient SO4 changes in the US, Europe, and Asia are proportional to SOx emission changes, but the proportionality constant varies by location (Manktelow et al., 2007). Between 1985 and 2000, the US and European column burden of SO4 changed 0.65% for every 1% change in SOx emissions. However, for Asia, the change in SO4 was estimated to be 0.88% for a 1% change in emissions. These authors concluded that as emissions tended to move southward between 1985 and 2000, in-cloud oxidation tended to be less oxidant limited. After 1985, a 12% reduction in global SO2 emissions resulted in a 3% reduction in SO4 burden.
SOx interactions with tropospheric chemistry
The previous sections show the effects of growth and decline of SOx emissions on ambient SOx concentrations, precipitation SO4, and S deposition. As noted, the deposition rate is proportional to ambient concentrations. These components of the flux of atmospheric S affect the S cycle. Changes in natural tropospheric chemistry that result from changing SOx concentrations also modify the S system. The impact of SOx on atmospheric chemistry affects not only emissions-concentration trends, but also influences the complexities of tropospheric chemical interactions themselves. Sulfate production from SO2 either in ambient air or in hydrometeors depends on interactions involving gas-phase oxidation coupled with oxidant formation, and including aqueous chemistry. The latter involves dissolved oxidants, reactions catalyzed by metals (e.g., iron and manganese) or sooty carbon (e.g., Larson, 1980; Calvert and Stockwell, 1984). Multiphase interactions in the troposphere have introduced potentially important evolutionary changes in air chemistry with SOx emissions. Three examples of SOx multi-pollutant reactions include interactions with photochemically induced oxidant chemistry, SO4 with nitrate, and SOx with organic vapors and particulate carbon.
The first case involves the oxidation of S gases in the troposphere by OH free radical in the gas phase, by H2O2, especially in aqueous reactions, and, to a lesser degree, ozone (O3) (e.g., National Acad Sci - NAS, 1983; Seinfeld and Pandis, 1998). It is widely known that the SOx chemistry is coupled to the photochemical cycle of oxidant production through a complex chain of nitrogen oxide and organic vapor reactions that form smog. S gas oxidation through an intermediate step of SO3 formation tends to syphon away OH and H2O2 from the oxidant production cycle (e.g., Kleinman, 1985; Stockwell et al., 1988). This effect is generally thought to be of minor importance for O3 production, even in highly reactive urban smog conditions. As SO2 levels increased across the continent, there would have been a tendency to reduce the intensity of the photochemical cycle, moderated by reductions in solar radiation by haze formed in part by sulfate particles. With sustained reduction of SOx in the troposphere, the oxidant forming cycle would tend to be more active without OH and H2O2 scavenging by SO2 (e.g., Stockwell, 1994).
The complexities of combined gas phase and condensed phase SO2 interactions in tropospheric chemistry led some investigators to hypothesize that the SO2 oxidation process should be non-linear when coupled with the oxidant cycle (e.g., NAS, 1975; Calvert and Stockwell, 1984; Stockwell et al.,1988). The 1980s estimates of long-term SO4 concentration and deposition trends predicted by models assumed a seasonally “constant” linear oxidation rate proportional to SO2 (e.g., Hidy, 1994). However, field experiments showed a range of more than an order of magnitude in apparent oxidation rates (e.g., Larson, 1980). Additionally, comparison of early ambient SO2 and SO4 concentration changes with SOx emissions yielded mixed results regarding non-linearity (e.g., Kurosaka, 1976; Frank, 1974). Study of the observations of SO4 in rainfall spatially averaged over > 100,000 km2 across the eastern US also showed apparent non-linearity relative to SOx emission changes (e.g., Hilst, 1992). Non-linearity could appear empirically as a curvature in observed SO2–SO4 trends relative to SOx emission changes (e.g. NAS, 1975). Possibly, multidimensional diagrams would relate SO4 to oxidant chemistry, analogous to an Empirical Kinetics Modeling Approach (EKMA) result relating O3 to its precursors (volatile organic compounds--VOCs and nitrogen oxides--NOx) (e.g., Lloyd et al., 1981).
Modeling studies have qualified the apparent linearity in SOx change with SO2 emissions. Stockwell (1994), for example, found enhanced linearity of emission source-SOx chemistry through the coupling of gas phase and aqueous oxidation processes, specifically, through the linkage of the H2O2 production rate with interactions of SO2 and HO2 radicals. Benkowitz (1991) found that modeled linearity depended on interactions aloft, which in turn depended on the vertical distribution of SO2 as influenced by stratoform clouds compared with convective systems. The relations of emissions to ambient SOx and rainwater SO4 tend to become more linear after the 1990s, as seen in the observational examples above. Apparent ambiguities in the linearity of the SO2 and SO4 responses to emission reductions, however, have implications for the future rate of reduction of SOx and for its chemical interactions in the presence of oxidants and organosulfur compounds (see also Perraud et al., 2015).
Another case involves the multiphase aerosol chemistry of SO4 and nitrate. In the troposphere, SOx is oxidized through a pathway of sulfuric acid to salts of ammonia in suspended particles. If sufficient NH3 is present, nitrate (as NH4NO3) tends to displace SO4 salts as particulate (NH4)xHySO4 declines with decreasing ambient SO4 concentrations. This process depends on nitrate equilibrium with gaseous nitric acid in the presence of water and other species, as well as on temperature (e.g., Seinfeld and Pandis, 1998). Study of SO4 and NO3 in the US indicates that the aerosol particle chemistry varies at different locations from a small displacement of sulfate by nitrate at current SOx levels to a larger one (e.g. Blanchard and Hidy, 2005). The direction of anthropogenic SOx perturbation in aerosols is likely to focus more on the NO3 component, with the caveat of the importance of organic carbon in aerosols (e.g., Hallquist et al., 2009).
This brings us to the last example of the chemistry of acid SO4 and organic carbon vapors. Their interaction has a role in organic aerosol production in the troposphere, which could be changing along with changing ambient concentrations of SOx. In the 1990s, increased interest in acid-based reactions of certain organic vapors, including naturally occurring isoprene and terpenes, arose based on laboratory experiments and increasing evidence from field studies (e.g., Hallquist et al., 2009). These reactions are closely related to photochemical processes that form oxidants. This interest has stimulated a variety of contemporary studies characterizing and quantifying this class of chemical reactions. Field studies have been especially aimed at conditions of high natural VOC concentrations found in the forested regions of the Southeast (e.g., Surratt et al., 2007; Weber et al., 2007; Hallquist et al., 2009; Carlton et al., 2014; Hidy et al., 2014; Liao et al., 2015). The findings from the Southeastern Oxidant and Aerosol Study (SOAS) experiments and other studies in the SEARCH region and in Tennessee indicate that adducts of VOC-SO4 reactions are found particularly in summer even with greatly reduced contemporary levels of SOx. One can imagine that this route to organic carbon particle formation was increasingly important in the 20th century with elevated SOx and acid SO4 present. Their presence with natural VOCs, including isoprene and terpenes, could have contributed to the known degradation of visibility by haze across much of the Southeast after the early 20th century.
Summary and conclusions
Sulfur oxides (SOx) are an example of short-lived species in the troposphere that are relevant to the Anthropocene concept. They have been emitted into the air, with smoke, as a byproduct of the fossil fuel combustion that accompanied the industrial revolution, which expanded from 19th century Europe and North America to the world in the 20th century. Anthropogenic SOx represent a disturbance to the biogeochemical sulfur cycle, affecting not only the troposphere, but also terrestrial and aquatic ecosystems. Sulfur oxide levels exceeding natural emissions have been reported in precipitation in the contiguous US since the 1920s and in ambient air post-World War II. Sulfur oxide concentrations peaked in the US in the mid-1970s, while later being curtailed with emission reductions resulting from air pollution regulation. Since the 1990s, SOx emissions have declined, and ambient annual average SOx and precipitation SO4 have decreased linearly with annual emissions, with somewhat different proportionalities. The current concentrations in ambient air and in precipitation in the US tend toward 0.5–2 µg/m3 SO4, ∼ 1 ppbv SO2 and 0.1–0.5 SO4 mg/L in precipitation. These levels could begin to approach preindustrial levels in the US West, but remain elevated in the East. Despite the decreases, SOx concentrations remain well above a hypothetical background; the declines will eventually level off to a steady baseline condition in the foreseeable future, reflecting natural emission sources, reduced domestic anthropogenic impact following further emission reductions, and continued transcontinental influence. The major anthropogenic SOx influence on the lower troposphere is estimated to begin roughly with industrialization in 1850. The US anthropogenic SOx contribution has spanned over 160 years, with its decline associated with evolving technology and a regulatory response intended to address known toxicity to humans and ecosystems.
The relatively short lifetime of SOx of a few days in the troposphere is associated with reactivity and solubility in hydrometeors. Spatial gradients in ambient concentrations occur on a scale of 400–1000 km, thus constraining most of the influence of US emission sources to domestic receptor locations. Most of the higher concentrations of SOx remain in the industrialized and densely populated eastern US. Here the SO2 concentrations are generally about 1 ppbv or less, and SO4 concentrations are less than 3 µg/m3. The western regions are spatially heterogeneous, with isolated emission sources surrounded by agricultural activity and remote regions, comprised of mountain ranges, prairie, arid deserts and forested lands. The west coast of the US is affected by a transcontinental residue of SOx from Asian and marine sources, which create annual average SO2 levels less than 1 ppbv and SO4 concentrations near 0.1 µg/m3.
The rise and fall of SOx in the lower troposphere over perhaps two centuries affects not only the sulfur cycle, but also tropospheric chemistry. The oxidation of S gases to form SO4 involves coupling with the photochemical oxidant cycle through OH radical and H2O2 oxidation pathways. Non-linear atmospheric chemical reactions result in changes in ambient or precipitation SO4 that are less than 1:1 proportional to changes in SO2 emissions. Sulfate change also affects the nitrate component of suspended particles as a result of ammonium-nitrogen oxide-SO4 interactions. Moreover, acid SO4 influences the production of organic aerosols through reactions recently shown to involve oxidation in the presence of acids of volatile organic species, including isoprene and terpenes.
Recognition of the rise of SOx emissions with urbanization and industrialization in the 19th and 20th centuries and the consequent air quality effects resulted in a socio-economic response sometimes identified with environmentalism. Initial pressure for managing public health and returning to a natural state motivated the public to demand improvements, first in smoke levels, then in local ambient SOx concentrations. The local initiatives appear to have had little effect on pollution reduction until after World War II (e.g., Brimblecomb, 1987; Mosley, 2014). After a century of increasing public pressure, regional and national lawmakers acted to develop laws for environmental protection (e.g., Stradling and Thorsheim, 1999; Mosley, 2014). Through the 20th century, the framework for these laws relied heavily on science and engineering to supply guidance and solutions for pollution reduction. These included development of efficient and clean combustion technologies, emission control devices, low S fuel switching, and conservation. By the late 20th century, SOx pollution and other contamination reached international proportions, leading to a series of agreements to address acid rain, trans-international boundary pollution and other impacts. Sulfur oxide pollution is well under control in the developed world, with reduction in emissions following major investments in technology and energy resource changes. However, the global distribution of SOx emissions is changing. SOx emissions began declining in North America and Europe after 1970, but global emissions were relatively constant between 1970 and 2005 as global industrialization proceeded and populations continued to grow.
The changes in ambient SOx and precipitation SO4 with emission reductions confirm that humans can affect the levels of short-lived species in the atmosphere. The impact of such constraints is difficult to measure in the Earth system. There is little evidence of substantial influence of anthropogenic S emissions on the global S cycle; however, local or regional ecological elements of this cycle are modified (e.g., Clair et al., 2011). Epidemiological studies of direct human health response to SOx reductions are rare; two examples of population health improvement with reduced SO4 have appeared in the recent literature (e.g., Pope et al., 2007, 2009). These studies document improvement in population health with reduction in SO4, but are controversial, particularly in relation to the air quality data used by the authors. Aqueous ecosystems have shown a response in eastern North America (Clair et al., 2011), but terrestrial ecosystem response to SOx deposition appears to be slow and weakly documented relative to atmospheric change. Both the human and ecosystem responses are likely to be slow to emerge and difficult to establish in proportion to SOx reductions.
In the 21st century, the evolution of environmental protection has begun to address projected changes due to climate forcing by long-lived and short-lived pollutants. Concerns about climate change have taken at least a half century to emerge from the initial debates over scientific findings to increasing public attention. An international agreement has now been established to moderate the risk of potential climatic effects, which will likely require major changes in primary energy resources. Ironically, continental, ambient SO4 concentrations act in an opposing direction to greenhouse gases in climate forcing, so the reductions in SOx concentrations that have been achieved will likely reinforce the warming effects of greenhouse gases.
Data accessibility statement
Measurements and data cited are from peer-reviewed journals, books, sponsored reports and US government data or summaries.
